【特価商品】Raspberry Pi Mono Sensor Global Shutter Camera module gs camera module Support External Trigger 60fps 1456x1088 resolution for raspberry pi,Supports Rpi-Cam/Libcamera & External Trigger

¥8,636

残り1点

International shipping available

【商品名】
Raspberry Pi Mono Sensor Global Shutter Camera module gs camera module Support External Trigger 60fps 1456x1088 resolution for raspberry pi,Supports Rpi-Cam/Libcamera & External Trigger
【商品説明】

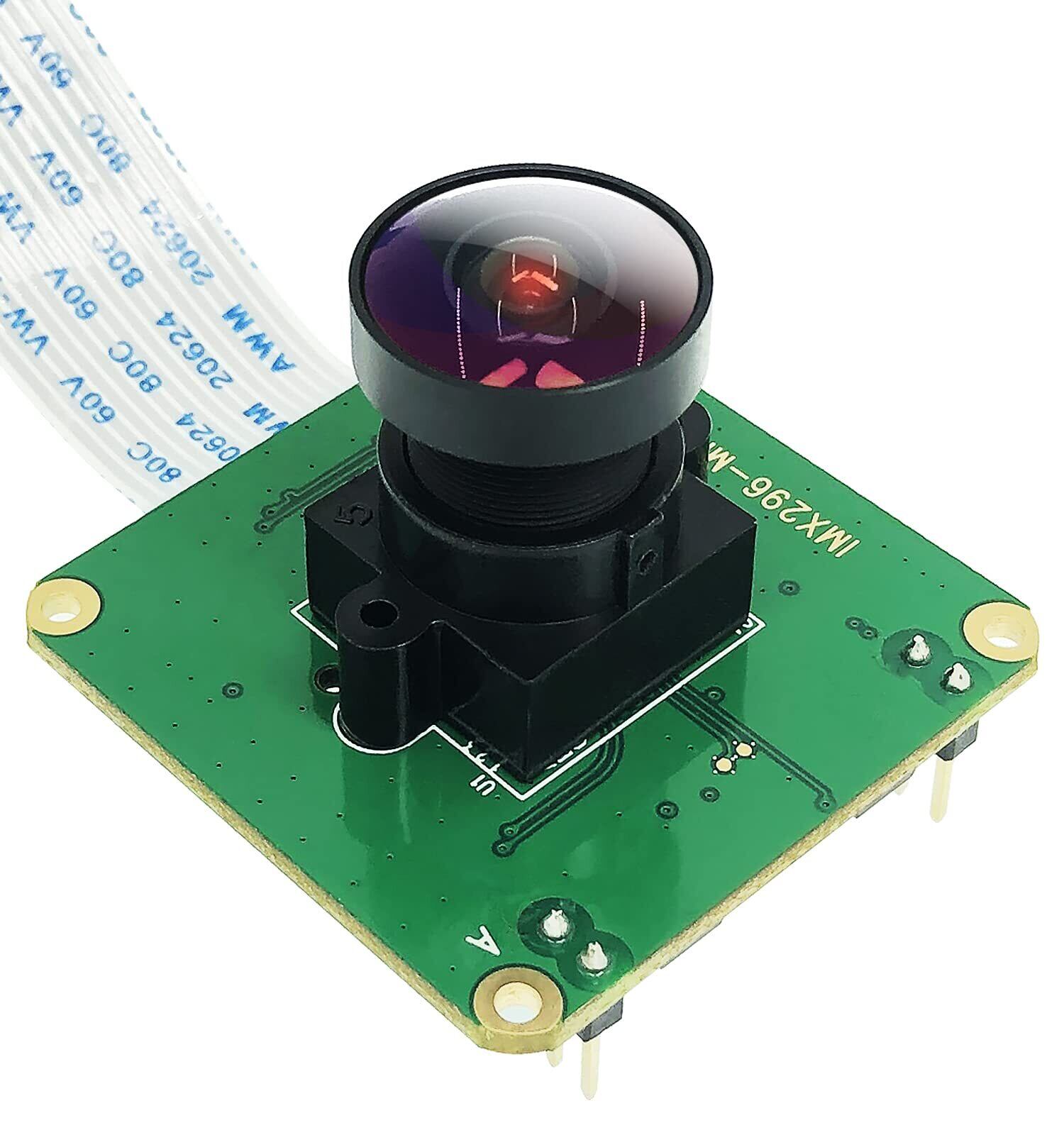

The imx296 is a mono version gs camera module compatible with Raspberry Pi official gs camera module;
Compatible with raspberry pi os with built in driver, support libcamera directly;
Support external fast trigger, Isolated Trigger and Strobe signal, Trigger the capture in the falling edge of external trigger signal.
Come with a Fish-Eye Wide Angle Lens of FOV 160 angle.
The mono gs camera module compatible with Raspberry Pi 4/Pi 3B+/Pi 3.
The mono gs camera module sensor IMX296LLR-C is a diagonal 6.3mm (Type 1 / 2.9) CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels. This chip features a global shutter with variable charge-integration time.

This chip operates with analog 3.3V, digital 1.2V, and interface 1.8V triple power supply and has:
- low power consumption.
- High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: Sensing)

Features:
- Size: 39*39mm
- Interface: RPI Camera 15 PIN FPC
- Output format: Y10
- Output resolution:1456*1088
- Global shutter with variable charge-integration time

Quick Start:
step1, Modify config.txt,add "dtoverlay=imx296" to the last line;
step2, "sudo nano /boot/cmdline.txt",add "cma=128M" to the last line;
step3, "libcamera-hello -t 0"
